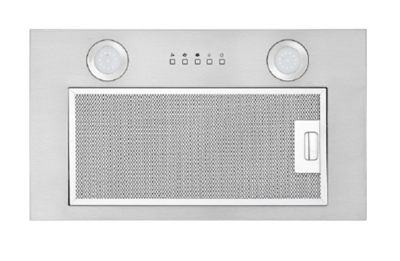

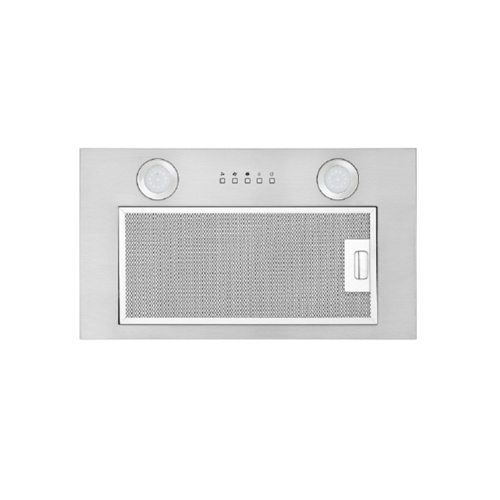

PLATINUM 520 DC UNDER-MOUNT RANGEHOOD
Code: 010346
Model: AUPL-UH52CXL

Key features

• 520 Undermount Rangehood
• Stainless Steel Fascia**
• LED Lights
• 3 Speed Levels
• 630m3/h DC Motor Extraction
• Ducted or Recirculated*

*optional carbon filters sold separately
** black fascia sold separately

Specifications

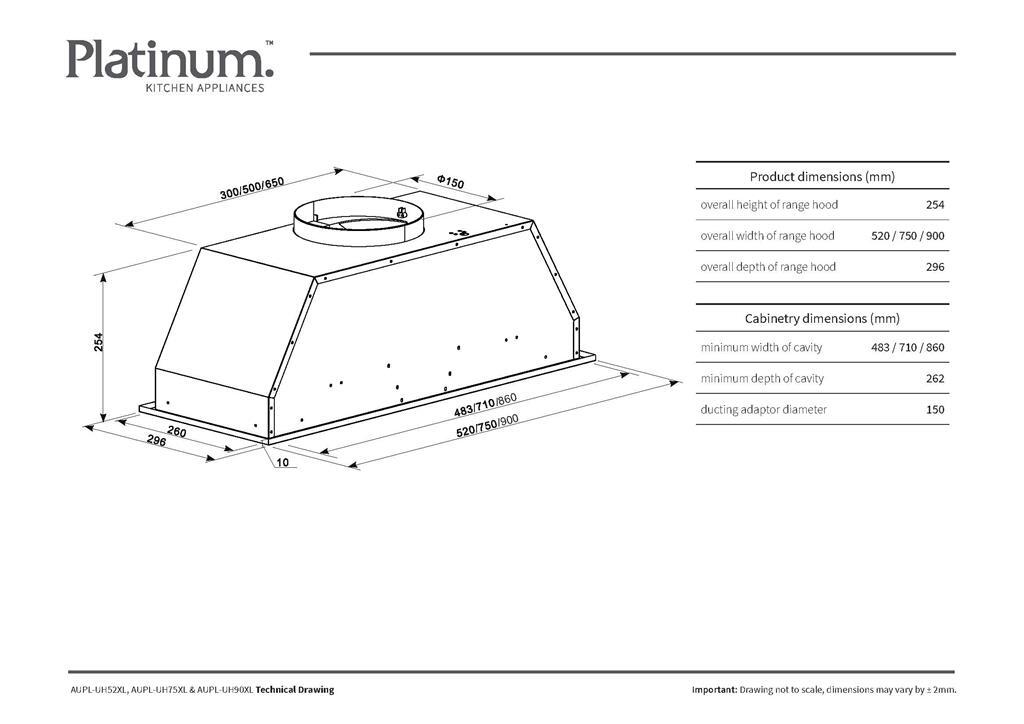

• Dimensions: W520 x D296 x H254mm
• Location of Control: Front Centre
• Fascia Colour: Stainless Steel (Black fascia sold separately)
• Body Colour: Silver
• Control Type: Electronic Button
• Noise Levels: 27, 45, 51dB
• Light Location: Front
• Ducting Outlet: 150mm, Centre
• Non return flaps: Yes
• Filter Type: 1 x Aluminium Panel (Black panel sold separately)
• Filter Cleaning: Dishwasher Safe

Electrical

• Supply Voltage: 220-240V~
• Supply Frequency: 50Hz
• Motor: 1 x 75W DC Motor
• Lighting Type: 2 x 1.5W LED
• Connection: 10A Plug
• Cable Length: 1500mm
• Approvals: AS/NZS

Accessories

• Aluminium Panel Filter: 2306011.001
• Black Aluminium Panel Filter: 2399561
• Black Fascia Panel: 2399558
• Optional Round Carbon Filter Set: 0103521

Warranty

• Warranty: 5 Years
• For full details please see our warranty terms and conditions.
